Ultrasonic

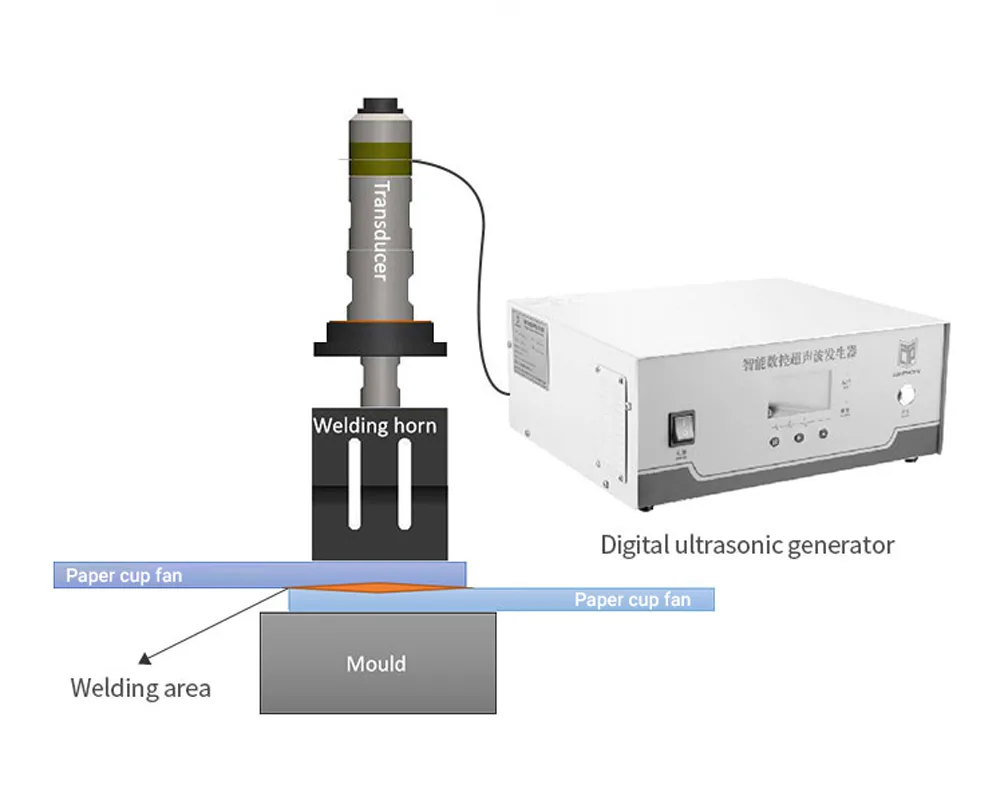

A set of ultrasonic (for paper cup machine) consists of Digital ultrasonic generator, Transducer, Welding horn, power cord, control cord, connecting cord, electric fan.

Digital ultrasonic generator(P5):
The box has a built-in high-frequency oscillation circuit that converts electrical energy into corresponding high-frequency electrical signals to provide an energy basis for welding. It also has intelligent control functions such as power regulation and overload protection.

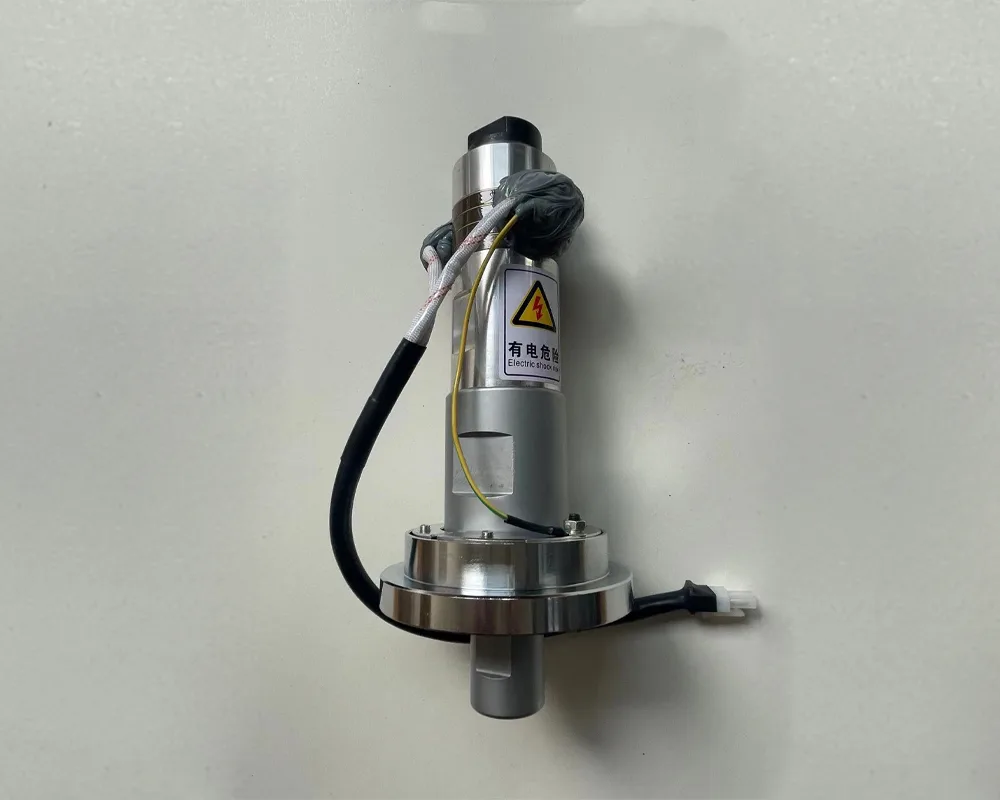

Transducer(P2):
Transducer: converts electrical signals into mechanical vibrations (ultrasonic frequency);
Amplifier (middle metal section): amplifies vibration amplitude and optimizes energy transfer efficiency;
Connection structure: flange is used for fixing, and cables realize electrical signal transmission.
Welding horn(p3):
Through customized appearance to adapt to different welding requirements (such as plastic parts splicing, metal spot welding), ultrasonic vibration is transmitted to the welding surface, and molecular friction heat is used to achieve material welding. The welding surface is smooth and high in strength.

Capacity	15/20K
One set of ultrasonic	Digital ultrasonic generator, Transducer, Welding horn, power cord, control cord, connecting cord, electric fan.
Size	According to machine/ customer requirements
Custom	Accept

Request Quote

Product Description

From the perspective of ultrasonic waves themselves:
1. Transducer aging, such as the original 20K transducer, will cause frequency deviation after long-term use (such as a 20k transducer, which may deviate to 19.5K after aging)
2. Capacitor/circuit aging: Aging of capacitors in the control box, oxidation of circuit solder joints, etc., will cause mismatch between the output frequency and the transducer
From the perspective of raw materials:
1. Paper thickness and gram weight. The higher the paper thickness and gram weight, the greater the vibration required, but high frequency will cause the transducer to overload.
2. Material and thickness of the coating layer:
Different coating materials have different melting points and require different vibration frequencies.
Different coating thicknesses require different vibration frequencies. For example, if the coating thickness is >50μm, ultrasonic waves will take longer to penetrate, which will directly reduce the speed of the machine.

Related Videos

Product Features

Installation of equipment

Equipment commissioning

Training on the use of equipment

Equipment maintenance guidance

Installation of equipment

Spare parts supply

Equipment upgrade and renovation

Lifetime technical support

One year warranty or more

7×24h service

Related Products

Heating tube for paper cup machine

1. Paper cups suitable for multiple scenarios. You can have your exclusive printing design without large orders! 2. Whether it's your preferred printed patterns, specific sizes, or special materials, we fully support customization. 3. One-stop cargo assembly service, controlling every detail with intact packaging, high product quality, and strong delivery capability. Want unique paper cups? For detailed inquiries, feel free to consult us at any time!

Learn More

Frequently Asked Questions

What types of paper packaging are there?

We offer one-stop solutions for the paper packaging industry, which means we provide all the products in this industry. First of all, we need to determine your requirements, such as the application scenarios of your product, your monthly consumption, packaging requirements, etc. We will determine the final details step by step according to your requirements.

What is our minimum order quantity?

-Of course, you can customize it in small batches as a product trial order. Once you are satisfied with our quality and service, you can purchase it in large quantities from us. We believe that our service will surely satisfy you.

-Our regular minimum order quantity is 10,000 pieces. If your order quantity is lower than this standard, we can still provide customized services. Due to the relatively high cost proportion in raw material procurement, process debugging and other links in small-scale production, the unit price will be reasonably adjusted according to the actual order volume. We understand the diverse needs of different customers and are always committed to fully supporting your packaging project with a flexible cooperation model.

Can different kinds of products be combined and loaded into a single shipping container?

-Of course! We possess excellent cargo consolidation capabilities. We can accurately calculate the container space based on the packaging specifications of each product (such as dimensions, weight, and other data), and through scientific optimization of the container loading plan, we can maximize the utilization rate of the container space, thus effectively saving our customers’ logistics costs. Behind all this is our professional logistics team. They have full control over the entire process from data accounting to container loading execution, ensuring that the shipment process is efficient and orderly, and relieving you of any concerns about goods transportation.

How many paper cup sheets can be made from one ton?

It depends on the different paper thickness and paper cup fans.

– 150-170g:
7oz: 300,000pcs(150g) – 270,000pcs(170g)
8oz: 250,000pcs(150g) – 220,000psc(170g)

– 190-210g:
7oz: 240,000pcs(190g) – 220,000pcs(210g)
8oz: 200,000pcs(190g) – 180,000pcs(210g)

– 230-250g:
7oz: 200,000pcs(230g) – 120,000pcs(250g)
8oz: 160,000pcs(230g) – 150,000pcs(250g)

For reference only. The exact quantity is subject to the actual machine

What are the differences between the containers used for cold drinks and hot drinks?

The cold drink cups are coated with a film on both sides, while the hot drink cups are coated with a film on only one side. If you observe carefully, you will find that on the outer side of some paper cups filled with cold drinks, water droplets will condense. Therefore, the outer side also needs to be coated with a film. There will be no water droplets condensing on the paper cups for hot drinks. So, it only requires a single-sided film coating. It is worth mentioning that double-layered cups can be used for hot drinks, because double-layered cups have the effect of keeping the drinks warm.
