The main difference between the full-servo paper cup machine and the traditional paper cup machine lies in their driving and control methods (the former is centered on servo motors + electronic control, while the latter relies on mechanical cam mechanism transmission).
Main advantages of servo systems:
1.Higher control precision, and stable product quality.
Traditional cam paper cup machines drive various mechanical structures (such as paper feeding, curling, gluing, etc.) through the contour curves of mechanical cams. Their precision depends on the machining accuracy of the cams and the stability of mechanical transmission. However, long-term use of components like cams and gears will cause wear, leading to action deviations. Moreover, mechanical systems inevitably have errors, which can easily result in issues with paper cups such as size deviations (e.g., in diameter and height), weak gluing, and uneven curling.

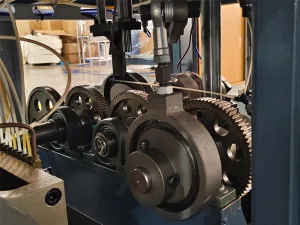

Gear(Left) and Servo(Right)
Full-servo paper cup machines use multiple sets of servo motors to independently drive key actions (such as paper feeding, bottom sealing, curling, and discharging). Equipped with a closed-loop control system (with real-time feedback from encoders), they can correct position and speed deviations in real time, ensuring that the precision of each action (such as displacement, pressure, and time) is controlled at the ±0.01mm level. This high-precision control can significantly improve the dimensional consistency, gluing strength, and curling flatness of paper cups, greatly reducing the defect rate and ensuring more stable product quality.
2.Higher production efficiency and significant capacity advantages
Traditional cam paper cup machines have their operating speed limited by the inherent characteristics of mechanical structures: mechanical parts like cams and gears have inertia and wear limits. Speeding up too quickly can cause impact vibrations, so their maximum speed is usually low.

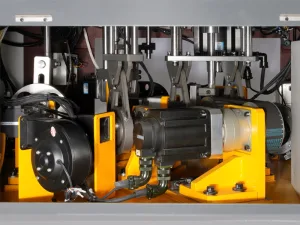

Gear(Left) and Servo(Right)
Full-servo paper cup machines, thanks to the high-speed response of servo motors (with no mechanical inertia restrictions), can start, stop and accelerate faster—their operating speed is significantly higher than cam machines. Plus, mold changes take very little time, so they have a higher ratio of effective production time. Overall, their production capacity can increase by 30%-50%.
3.Lower maintenance costs and longer equipment lifespan
Traditional cam-driven paper cup machines rely on numerous mechanical transmission components (cams, gears, linkages, etc.), which experience severe wear during long-term operation. Frequent replacement of vulnerable parts results in short maintenance cycles and high costs. Additionally, mechanical wear gradually amplifies precision errors, shortening the equipment’s lifespan (typically requiring major overhauls every 3-5 years).
In contrast, full-servo paper cup machines drastically simplify the mechanical transmission structure (mainly relying on direct servo motor drive), reducing vulnerable components like gears and cams, resulting in extremely low wear rates. Meanwhile, the closed-loop control of the servo system prevents overload shocks, enhancing equipment stability. Maintenance cycles are extended to 5-8 years, with comprehensive maintenance costs reduced by over 60%.
4.Intelligent integration is more convenient, adapting to automation upgrading.

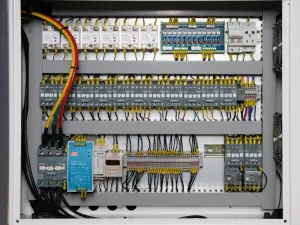

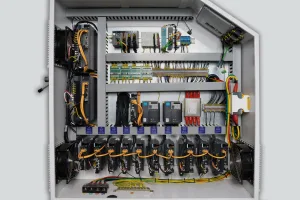

The control system of the full-servo paper cup machine (such as PLC and touch screen) can directly communicate with the servo drive, easily realizing functions like digital parameter setting, production data statistics (e.g., output, defective rate), and fault self-diagnosis.
In summary, through "replacing mechanical transmission with electronic drive", the full-servo paper cup machine has comprehensively surpassed the traditional cam machine in core indicators such as precision, efficiency, flexibility, and maintenance cost, and has become the mainstream upgrading direction of paper cup production equipment.
